Service Kit Tohatsu

NB! Bensinfilter medfølger ikke. For bensinfilter, trykk her.

MFS2,5/MFS3,5 :

• 1 x Shear pin
• 2 x Gearbox drain and vent washers
• 1 x Anode
• 1 x Impeller
• 1 x Impeller key
• 1 x Guide plate water pump
• 1 x Liner pump case
• 1 x Gasket water pump case
• 1 x Gasket guide plate
• 1 x Washer
• 1 x Split pin
• 1 x Spark plug

produktnummer: 3GT-87500-0



MFS4/5/6C :

• 2 x Gearbox drain and vent washers
• 1 x Fuel filter
• 1 x Anode
• 1 x Impeller
• 1 x Impeller key
• 1 x Guide plate water pump
• 1 x Liner pump case
• 1 x Gasket water pump case
• 1 x Gasket pump guide plate
• 1 x Washer
• 1 x Split pin
• 1 x Spark plug

produktnummer: 3GR-87500-1



MFS8/MFS9,8 :

• 2 x Gearbox drain and vent washers
• 1 x Anode
• 1 x Impeller
• 1 x Impeller key
• 1 x Guide plate water pump
• 1 x Liner pump case
• 1 x Gasket water pump case
• 1 x Gasket pump guide plate
• 1 x Gasket
• 1 x Washer
• 1 x Trim tab
• 2 x Spring pin
• 1 x Split pin
• 2 x Spark plug

produktnummer: 3V1-87500-0



MFS9,9/15/20C/D:

• 2 x Gearbox drain and vent washers
• 1 x Anode
• 1 x Impeller
• 1 x Impeller key
• 1 x Guide plate water pump
• 1 x Liner pump case
• 1 x Oil filter
• 1 x Gasket
• 1 x Gasket pump guide plate
• 1 x Washer
• 1 x Trim tab
• 1 x Split pin
• 2 x Spark plug

produktnummer: 3SA-87500-1



MFS25/30C:

• 2 x Gearbox drain and vent washers
• 2 x Anode
• 1 x Impeller
• 1 x Impeller key
• 1 x Guide plate water pump
• 1 x Liner pump case
• 1 x Oil filter
• 1 x Gasket
• 1 x Gasket pump guide plate
• 1 x Gasket pump case
• 1 x Washer
• 1 x Spring pin
• 1 x Trim tab
• 1 x Split pin
• 3 x Spark plug

produktnummer: 3NV-87500-1



MFS25/30D:

• 1 x oljefilter
• 1 x impeller
• 1 x Impeller kopp
• 1 x impeller key
• 1 x impeller plate
• 1 x pakning impeller plate
• 1 x pakning impeller
• 1 x trim tab anode
• 2 x undervanns hus anode
• 2 x motorblokk anode
• 3 x tennplugg (DCPR6E)
• 2 x girolje pakning
• 1 x motorolje pakning
• 2 x o-ring
• 1 x propell pin
• 1 x propell splint

produktnummer: 3VS-87500-1

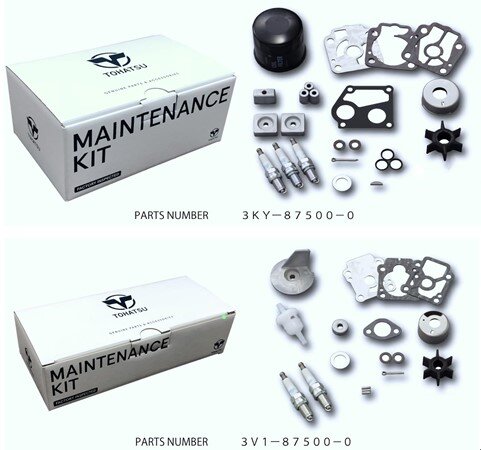

MFS40/50A:

• 2 x Gearbox drain and vent washers
• 1 x Impeller
• 1 x Impeller key
• 1 x Guide plate water pump
• 1 x Liner pump case
• 1 x Oil filter
• 1 x Gasket pump case
• 1 x Gasket pump guide plate
• 1 x Powerhead anode
• 2 x Gearcase anode
• 3 x Cylinder head anode
• 1 x Thermostat cap gasket
• 1 x Washer
• 3 x O rings
• 1 x Split pin
• 3 x Spark plug

produktnummer: 3KY-87500-0
